Canton Fair for veritical form fill seal bagger machine

Apr 20 - 2023
Share:

Packaging Machine Manufacturer Support OEM&ODM Service

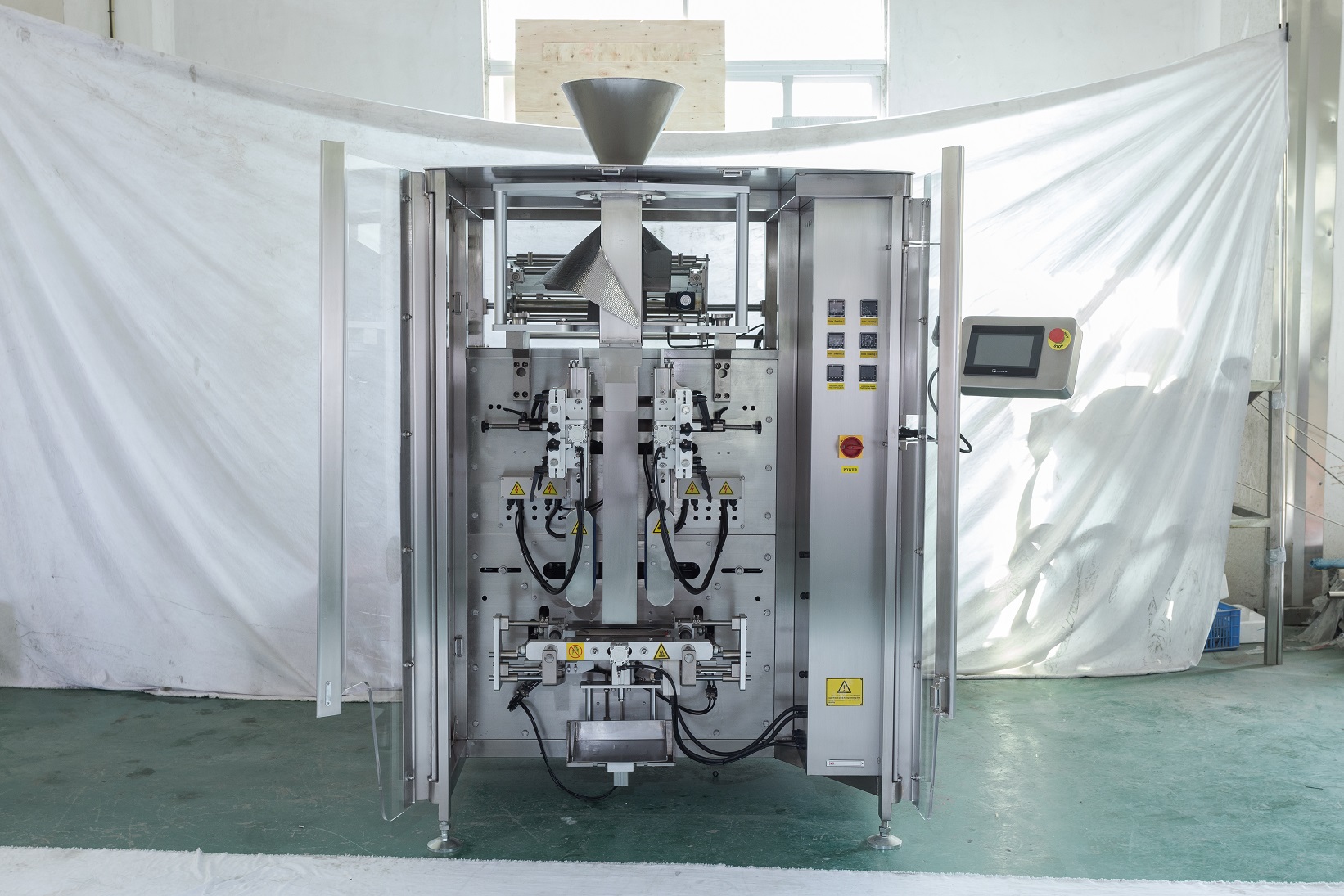

It is suitable for packing a range of granular, powder and liquid products, and particularly suited to products that require high standards of package: aesthetically perfect, without any wrinkles, the flush seams are highly resistant and all four sides can be printed on.
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use. * Use famous brand electric and pneumatic components, stable and long life circle. * Use superior mechanical components, reduce the wear out loss. * Easy to install film, auto correcting the excursion of the film. * Apply advanced operating system, easy to use. To be used on Top Y High quality machine, it makes your packing work easily and efficiently.

Specification of TOPY-VP Series Packaging Machine
Model No.
TOPY-VP420
TOPY-VP520
TOPY-VP620
TOPY-VP730
TOPY-VP800
Bag Width
60-200 mm
100-250 mm
100-300 mm
140-350 mm
150-400 mm
Bag Length
70-300mm
80-350 mm
80-350 mm
200-400 mm
250*400 mm
Bag Speed (Single motor)
10-70 bags/min
15-60 bags/min
15-60 bags/min
10-50 bags/min
5-30 bags/min
Film width
120-420 mm
220-520 mm
220-620 mm
300-720 mm
340-800 mm
Air Consumption
0.7 Mps
0.5m3/ min
0.8 Mps
0.4m3/ min
0.8 Mps
0.4 m3/ min
0.8 Mps
0.5 m3/ min
0.6 Mps
0.7 m3/ min
Film thickness
0.03-0.1 mm
0.04-0.1 mm
0.04-0.1 mm
0.05-0.12 mm
0.06-0.15 mm

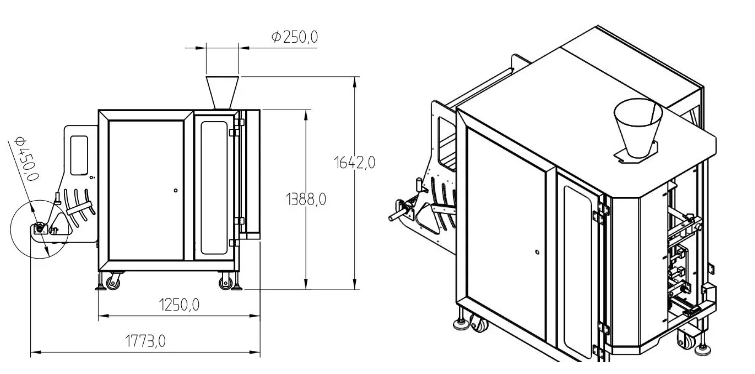

Dimension (mm)
1530*970*1600
1430*1200*1700
1430*1200*1800
1340*1580*1950
1500*1680*2100
Weight (KG)
450
680
700
800
1000
Power Supply
2.2 kw
2.5 kw
2.5 kw
2.5 kw
3.0 kw
